Displacement per Revolution: It ranges from 3.6
cm
3
(for IPV 3 - 3.5) to 251.7
cm
3
(for IPV 7 - 250).
Speed Range: The minimum speed across the range is 400
min
−1
, and the maximum speed varies from 1,800
min
−1
to 3,600
min
−1
depending on the specific model.
Delivery: The delivery volume at 1,500
min
−1
also varies according to different displacements. For example, the IPV 3 - 3.5 has a delivery of 5.4 l/min, while the IPV 7 - 250 has a delivery of 377.5 l/min.
Pressure: The continuous pressure ranges from 210 bar to 330 bar, and the peak pressure at 1,500
min
−1
ranges from 250 bar to 345 bar.

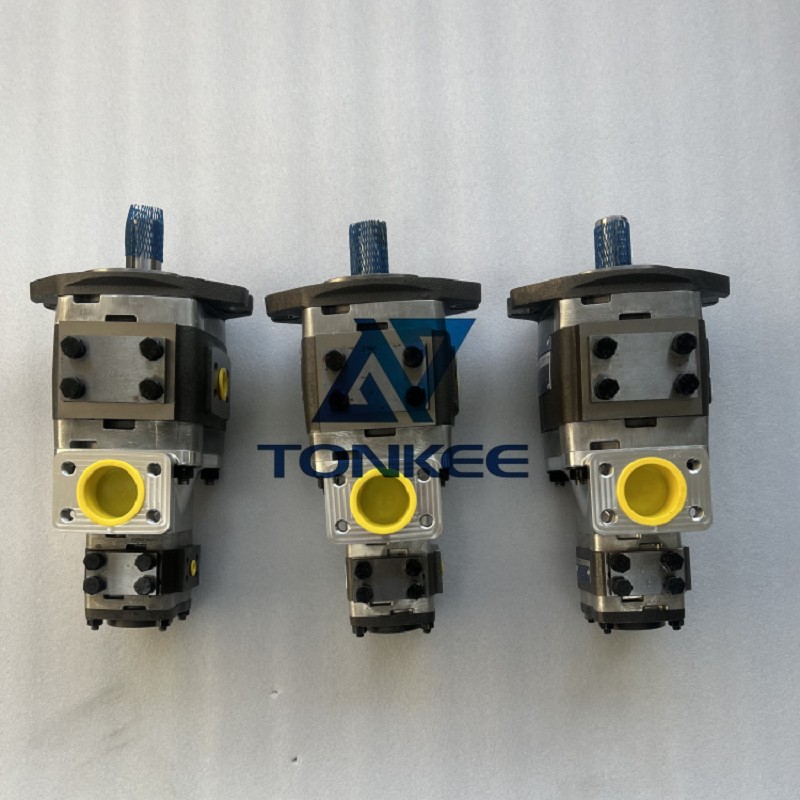

As for the "IPVAP5 IPV6 - 100 40/101" you mentioned, it's not clear what specific model it is. If the "IPVAP" series you mentioned is related to the obsolete Voith IPVAP series5, its relevant parameters are as follows5:
Displacement per Revolution: It ranges from 3.6
cm
3
(for IPVAP 3 - 3.5) to 126.2
cm
3
(for IPVAP 6 - 125).
Speed Range: The minimum speed is 400
min
−1
, and the maximum speed varies from 2,600
min
−1
to 3,600
min
−1
.
Pressure: The continuous pressure ranges from 210 bar to 300 bar, and the peak pressure ranges from 250 bar to 320 bar.
