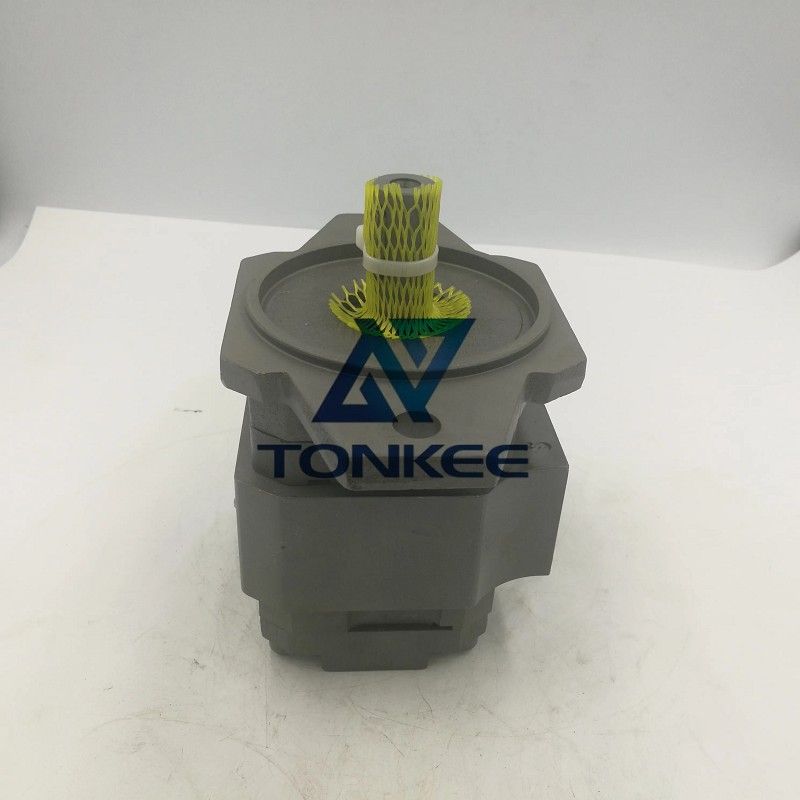

Type4: It is a gap - compensated internal gear pump with a fixed displacement.
Rated Pressure6: The nominal pressure is 315 bar (31.5 MPa), and the maximum operating pressure can reach 350 bar (35 MPa).
Displacement6: The geometric displacement of the PGH3 - 2X/011RE is 11.0 cm³.
Direction of Rotation4: It can be clockwise (R) or counter - clockwise (L) when viewed from the drive - end side.
Drive Shaft6: There are multiple options, including a cylindrical shaft with a parallel key according to DIN 6885 (type E), and cylindrical shafts with involute tooth systems according to ISO 3019 - 1 (type R: 16 - 4 9t 16/32 dp; type S: 19 - 4 11t 16/32 dp).
Seal Material6: The standard seal material is FKM (fluorocarbon rubber). For applications involving HFC hydraulic fluids, an NBR shaft seal and FKM seals are used.
Line Connections4: The suction and pressure ports are in accordance with SAE standards, and the pressure port adopts the standard pressure series.
Mounting Flange4: It is a 2 - hole mounting flange.
Gear Tooth System4: The toothing is an involute tooth system, which results in low flow and pressure pulsation, contributing to low - noise operation.
Weight3: Approximately 7.3 kg.
