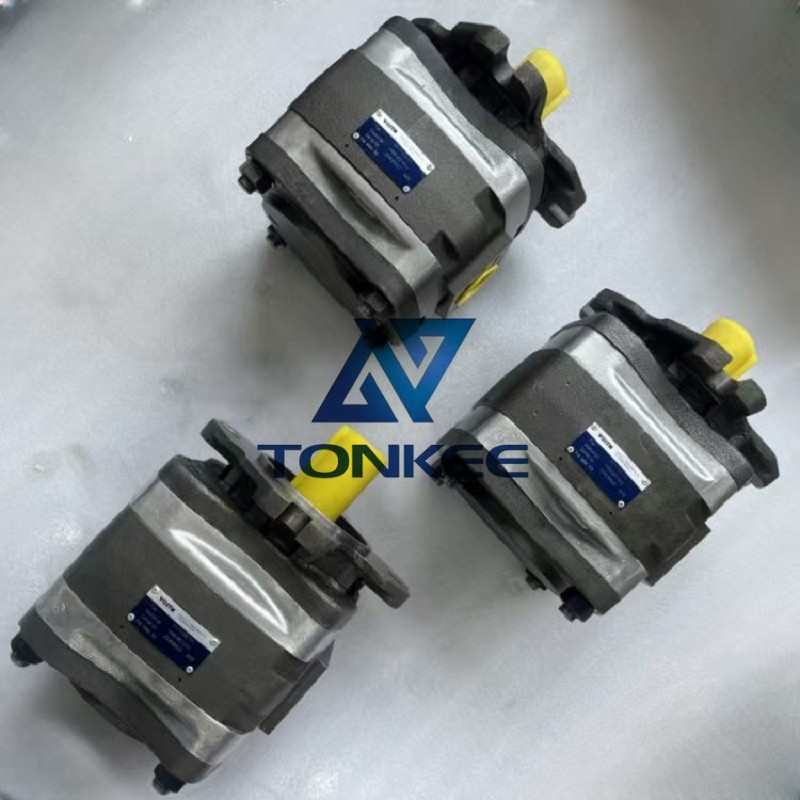

Voith IPV7-125 111 Hydraulic Gear Pump
Displacement per Revolution: 125 cm³
Speed Range:
Minimum Speed: 400 min⁻¹
Maximum Speed: 2,800 min⁻¹ (standard, may vary by configuration)
Delivery at 1,500 rpm: ~187.5 l/min (calculated as Displacement × Speed / 1,000)
Pressure:
Continuous Pressure: Up to 315 bar
Peak Pressure: Up to 345 bar (short-term)
Rotation Direction: Right-hand (RH) from shaft end (standard); left-hand (LH) 可选
Construction: Cast iron housing, gear type: external gear pump
Sealing: Lip seals or mechanical seals (depending on application)
Mounting: SAE or ISO standard flanges
2. Voith IPVAP5-32 101 Hydraulic Gear Pump
Displacement per Revolution: 32 cm³
Speed Range:
Minimum Speed: 400 min⁻¹
Maximum Speed: 2,800 min⁻¹
Delivery at 1,500 rpm: 48 l/min
Pressure:
Continuous Pressure: 315 bar
Peak Pressure at 1,500 rpm: 345 bar
Peak Pressure at Max Speed: 315 bar
Rotation Direction: Right-hand (RH) standard
Type: High-pressure internal gear pump with radial/axial gap compensation
Material: Cast iron housing, hardened steel gears
Applications: Hydraulic systems requiring variable speed and high pressure
